MDG EXTD9S - Electronic scoreboard Outdoor Scoreboard nine-digit View larger

MDG EXT D9S - Electronic scoreboard Outdoor nine digits

MDG EXTD9S

MDG EXTD9S - Electronic scoreboard Outdoor Scoreboard nine-digit

More details

More info

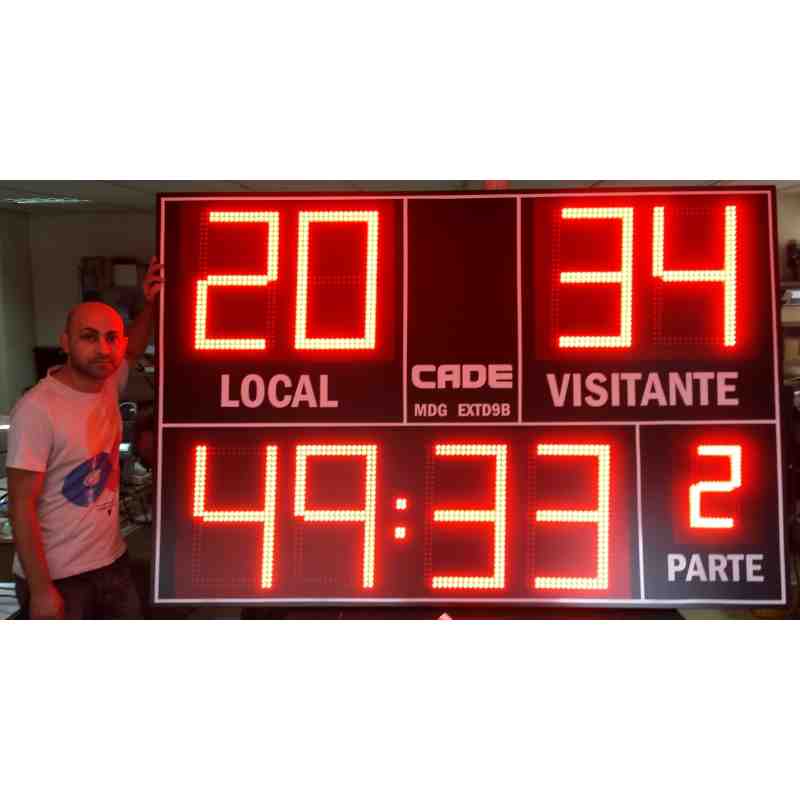

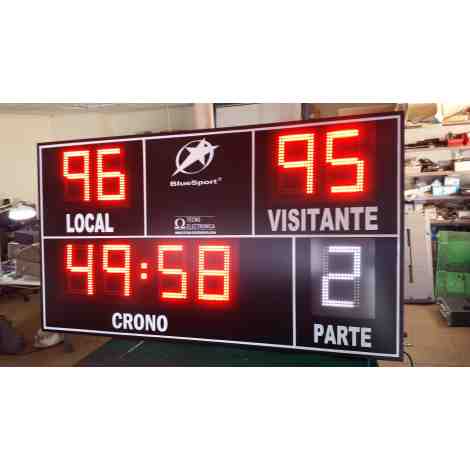

Electronic sports marker for exterior of nine digits of 18 cm. height for use outdoors, with sunlight. Suitable for sports such as football, rugby, hockey and polo.

The kit consists of the following elements:

  • A led screen for visualization with:

  • Four digits of 18 cm. height for time control (two for minutes and two for seconds). The chronometer can work in increasing or decreasing direction.
  • Four digits of 18 cm. of height for score (two for local team and two for visiting team) with a score of 0 to 99 points.
  •  One digit of 18 cm. of height for indication of period or sets in game.
  • Clock in real time when the marker is not in use, with indication of Hour and Minute. Data maintenance reserve: 45 days in case of power failure. Autonomous time base to quartz.

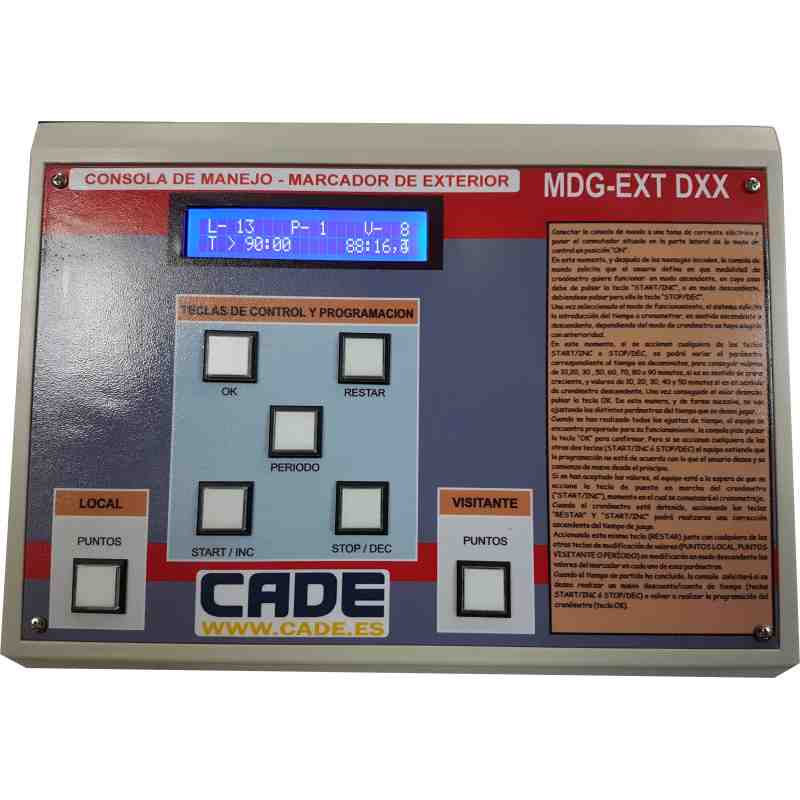

  • Control and command table controlled by microprocessor with 11,059 MHz operation, and LCD screen for programming included in the transport case. Communication Marker screen - Control table with possibility of control by radio controlled console (approximate range 100 meters). Digits protected with polycarbonate to avoid deterioration due to knocks.


Radio control system controlled by microprocessor. All our wireless systems are based on Chipcon's CC1100 circuit technology. From this radio system are incorporated control elements for transmissions such as the FEC (data reconstruction), Sync Word (synchronism word) as well as CRC error control. Maximum distance, in open field without interference, of 100 meters.

As an accessory, it may include indication of the names of the equipment by LED displays, fixed advertising spaces prepared for signage or single-color, bicolor or full-color LED screens, etc.
